Human Rights Protections–Tables

Published

February 13, 2023

Human Rights Data

Chris Fariss of the University of Michigan has done some very interesting work on human rights protection. You can find tons of stuff on his work on his website. I want to make a table of the data.

Load the Data and Libraries

Code
library(tidyverse)
library(magrittr)
library(DT)
library(gt)
library(gtExtras)
# install with remotes::install_github("jimjam-slam/ggflags")
library(countrycode)
library(ggflags)
load("data/HumanRightsProtectionScores_v4.01.RData")
HR.Data <- x
rm(x)
HR.Data <- HR.Data %>% left_join(., codelist, by= c("COW" = "cown"))

Let me now put the data into a browsable table.

A Browsable DataTable

This is a panel data structure with two dimensions: countries and years. As a result, though there are not all that many countries in the world, each country is potentially repeated up to 74 times [1946 to 2019]. The filter boxes at the bottom allow you to select ranges of the quantitative indicators.

Code
HR.Data %<>%
  mutate(country.name.en = as.factor(country.name.en))
HR.Data %>%
    arrange(country.name.en, YEAR) %>%
  select(`Country` = country.name.en, `Year` = YEAR, `Human Rights (mean)` = theta_mean, `Human Rights (std. dev.)` = theta_sd, `Killing (mean)` = killing_estimate_mean, `Killing (median)` = killing_estimate_median) %>%
  datatable(., filter = "bottom", extensions = 'Buttons', options = list(
    dom = 'Bfrtip',
    buttons = c('copy', 'csv', 'excel'),
  initComplete = JS(
    "function(settings, json) {",
    "$(this.api().table().header()).css({'background-color': '#131F4F', 'color': '#fff'});",
    "}")
)) %>%
  formatRound(., 3:6)

A Starter Table

Code
HR.Summary <- HR.Data %>%
  group_by(country.name.en) %>%
  mutate(Obs = n()) %>%
  filter(Obs==74) %>%
  summarise(Obs = mean(Obs),
            Mean = mean(theta_mean, na.rm=TRUE),
            SD = sd(theta_mean)
            )
HR.Summary %>% mutate(Country = country.name.en) %>%
  select(-country.name.en) %>%
  relocate(Country, .before=Obs) %>%
  gt() %>%
  cols_label(SD = "Std. Dev.")
Country Obs Mean Std. Dev.
Afghanistan 74 -0.808239676 1.5835807
Albania 74 -0.733855668 1.1318765
Argentina 74 -0.109687027 0.8659722
Australia 74 1.496089393 0.4821145
Austria 74 1.363463386 0.7163969
Belgium 74 1.950358681 0.8702604
Bhutan 74 1.639800956 0.8947993
Bolivia 74 0.031485088 0.6004716
Brazil 74 -0.986771401 0.4380970
Bulgaria 74 -0.141004868 0.8164432
Canada 74 1.513579623 1.0867982
Chile 74 -0.116312712 1.0980581
China 74 -1.690418324 0.5866867
Colombia 74 -1.549160011 0.3371290
Costa Rica 74 1.407450473 0.5889534
Cuba 74 -0.780236659 0.6767858
Czechia 74 0.234391962 1.7996961
Denmark 74 2.408907458 0.7988521
Dominican Republic 74 -0.353273333 0.4778804
Ecuador 74 -0.065637090 0.4093959
Egypt 74 -0.953780511 0.3387420
El Salvador 74 -0.456976650 1.0261214
Ethiopia 74 -1.250759418 0.9343362
Finland 74 2.234185764 0.9850571
France 74 0.732780358 0.7610454
Greece 74 0.343929239 0.6769572
Guatemala 74 -1.243405610 1.0571324
Haiti 74 -0.700733551 0.7827763
Honduras 74 -0.004659247 0.6012447
Hungary 74 0.316610321 1.1781173
Iceland 74 4.448582351 0.7721095
Iran 74 -1.490454238 0.5933340
Iraq 74 -1.759200305 0.6444676
Ireland 74 1.714516245 0.8303707
Italy 74 0.747846387 0.5781654
Japan 74 1.346933187 0.8414272
Jordan 74 -0.167098074 0.3324552
Lebanon 74 -0.501174232 0.5096649
Liberia 74 0.016102174 0.9964066
Luxembourg 74 4.610048247 0.7513979
Mexico 74 -0.698399686 0.4417479
Mongolia 74 1.979956542 0.8973234
Nepal 74 -0.407058523 0.7314475
Netherlands 74 2.179110741 1.6230486
New Zealand 74 3.388201387 0.5058292
Nicaragua 74 -0.334761828 0.8095413
Norway 74 2.580217186 1.2412017
Oman 74 1.083276811 0.4880672
Panama 74 0.534798448 0.9244702
Paraguay 74 -0.431996166 0.8683609
Peru 74 -0.398071785 0.8472583
Philippines 74 -1.442899788 0.5619596
Poland 74 0.228957535 1.2563224
Portugal 74 0.513038978 1.4489625
Romania 74 -0.552472696 0.9883813
Russia 74 -1.596063064 0.3926173
Saudi Arabia 74 -0.087345053 0.4736322
South Africa 74 -1.013630691 0.5891013
Spain 74 0.389802441 0.7055324
Sweden 74 1.675085472 1.0897249
Switzerland 74 1.177549367 0.8326230
Syria 74 -1.051481698 0.6846712
Thailand 74 -0.511999725 0.4080301
Turkey 74 -0.890056818 0.4962535
United Kingdom 74 0.890858555 0.8947926
United States 74 0.232456052 1.2330506
Uruguay 74 0.649137406 1.4119239
Venezuela 74 -0.585731862 0.7032445

Improving the Table

I want to add some things to this. I want a spanning header for the three bits of actual human rights data that I am using. I also want a list column of the data to feed to the sparkline function to generate the time series plot. I found a file of flags on my hard drive that I got from somewhere and I want to deploy them in the table. I will also round the digits

Code
library(countrycode)
Flags <- read.csv("data/flags_iso.csv")
HR.Summary <- HR.Data %>%
  group_by(country.name.en) %>%
  mutate(Obs = n()) %>%
  filter(Obs==74) %>%
  arrange(YEAR) %>%
  summarise(Obs = mean(Obs),
            Mean = mean(theta_mean, na.rm=TRUE),
            SD = sd(theta_mean),
            hr_data = list(theta_mean),
            .groups = "drop")
CCs <- codelist %>% select(country.name.en, iso3c)
HR.Summary <- HR.Summary %>%
  left_join(., CCs) %>%
  left_join(., Flags,
            by=c("iso3c" = "Alpha.3.code")) %>%
  select(-iso3c, -Country, -Alpha.2.code) %>%
  relocate(., URL, .after=country.name.en)
My.Table <- HR.Summary %>%
  gt() %>%
# format the numeric output to 3 digit rounding
  fmt_number(columns = c(Mean, SD),
             decimals = 3) %>%
# create nice labels for a few ugly variable names
  cols_label(country.name.en = "Country",
             SD = "Std. Dev.",
             hr_data = "Time Series Plot",
             URL = "Flag") %>%
# Plot the sparklines from the list column
  gt_plt_sparkline(hr_data,
                   type="ref_median",
                   same_limit = TRUE
                   ) %>%
# Plot the flags from the included URL's in the data
  gt_img_rows(URL, img_source = "web", height = 30) %>%
# use the guardian's table theme
  gt_theme_guardian() %>%
# give hulk coloring to the Mean Human Rights Score
  gt_hulk_col_numeric(Mean) %>%
# create a header and subheader
  tab_header(title="Human Rights Data Summary", subtitle = "Data from Fariss (2020)") %>%
# create the spanner heading
  tab_spanner(label = "Human Rights Measures",
    columns = c(
      Mean, SD, hr_data)
    )
# save the original as an image
gtsave(My.Table, "Table.png")
# show the table themed in accordance with the page
My.Table
Human Rights Data Summary
Data from Fariss (2020)
Country Flag Obs
Human Rights Measures
Mean Std. Dev. Time Series Plot
Afghanistan 74 −0.808 1.584 -2
Albania 74 −0.734 1.132 1
Argentina 74 −0.110 0.866 1.26
Australia 74 1.496 0.482 1.9
Austria 74 1.363 0.716 2.2
Belgium 74 1.950 0.870 3.2
Bhutan 74 1.640 0.895 2.4
Bolivia 74 0.031 0.600 0.47
Brazil 74 −0.987 0.438 -1
Bulgaria 74 −0.141 0.816 1.29
Canada 74 1.514 1.087 3.2
Chile 74 −0.116 1.098 0.53
China 74 −1.690 0.587 -1
Colombia 74 −1.549 0.337 0
Costa Rica 74 1.407 0.589 2.2
Cuba 74 −0.780 0.677 0
Czechia 74 0.234 1.800 3
Denmark 74 2.409 0.799 3.4
Dominican Republic 74 −0.353 0.478 -0.22
Ecuador 74 −0.066 0.409 0.90
Egypt 74 −0.954 0.339 -1
El Salvador 74 −0.457 1.026 0.27
Ethiopia 74 −1.251 0.934 -2
Finland 74 2.234 0.985 2.5
France 74 0.733 0.761 1.7
Greece 74 0.344 0.677 1.3
Guatemala 74 −1.243 1.057 0
Haiti 74 −0.701 0.783 1
Honduras 74 −0.005 0.601 -0.37
Hungary 74 0.317 1.178 1.45
Iceland 74 4.449 0.772 5.2
Iran 74 −1.490 0.593 -2
Iraq 74 −1.759 0.644 -2
Ireland 74 1.715 0.830 3.1
Italy 74 0.748 0.578 1.9
Japan 74 1.347 0.841 2.9
Jordan 74 −0.167 0.332 0.55
Lebanon 74 −0.501 0.510 0.04
Liberia 74 0.016 0.996 0.8
Luxembourg 74 4.610 0.751 5.3
Mexico 74 −0.698 0.442 -1
Mongolia 74 1.980 0.897 1.0
Nepal 74 −0.407 0.731 0.50
Netherlands 74 2.179 1.623 3.8
New Zealand 74 3.388 0.506 3.7
Nicaragua 74 −0.335 0.810 -0.85
Norway 74 2.580 1.241 4.3
Oman 74 1.083 0.488 1.1
Panama 74 0.535 0.924 2.66
Paraguay 74 −0.432 0.868 1.08
Peru 74 −0.398 0.847 1.07
Philippines 74 −1.443 0.562 -2
Poland 74 0.229 1.256 1.83
Portugal 74 0.513 1.449 2.1
Romania 74 −0.552 0.988 1
Russia 74 −1.596 0.393 -1
Saudi Arabia 74 −0.087 0.474 -1.12
South Africa 74 −1.014 0.589 -1
Spain 74 0.390 0.706 1.27
Sweden 74 1.675 1.090 3.2
Switzerland 74 1.178 0.833 2.6
Syria 74 −1.051 0.685 -2
Thailand 74 −0.512 0.408 -0.77
Turkey 74 −0.890 0.496 -2
United Kingdom 74 0.891 0.895 2.7
United States 74 0.232 1.233 -0.17
Uruguay 74 0.649 1.412 3.18
Venezuela 74 −0.586 0.703 -1.71

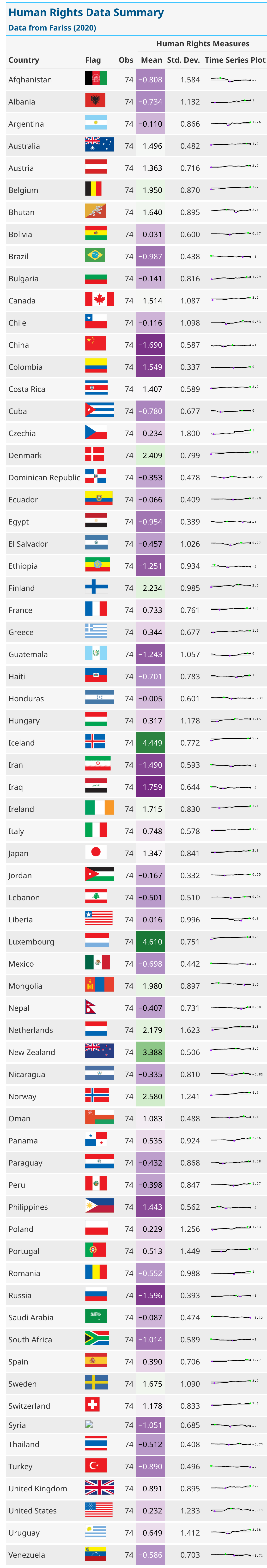

Image of Table

References

Code
knitr::write_bib(names(sessionInfo()$otherPkgs), file="bibliography.bib")

References

Arel-Bundock, Vincent. 2025. Countrycode: Convert Country Names and Country Codes. https://vincentarelbundock.github.io/countrycode/.
Arel-Bundock, Vincent, Nils Enevoldsen, and CJ Yetman. 2018. “Countrycode: An r Package to Convert Country Names and Country Codes.” Journal of Open Source Software 3 (28): 848. https://doi.org/10.21105/joss.00848.
Auguie, Baptiste, James Goldie, and Rémi Thériault. 2023. Ggflags: Plot Flags of the World in Ggplot2. https://github.com/jimjam-slam/ggflags.
Bache, Stefan Milton, and Hadley Wickham. 2025. Magrittr: A Forward-Pipe Operator for r. https://magrittr.tidyverse.org.
Fariss, Christopher, Michael Kenwick, and Kevin Reuning. 2020. “Latent Human Rights Protection Scores Version 4.” Harvard Dataverse. https://doi.org/10.7910/DVN/RQ85GK.
Grolemund, Garrett, and Hadley Wickham. 2011. “Dates and Times Made Easy with lubridate.” Journal of Statistical Software 40 (3): 1–25. https://www.jstatsoft.org/v40/i03/.
Iannone, Richard, Joe Cheng, Barret Schloerke, Shannon Haughton, Ellis Hughes, Alexandra Lauer, Romain François, JooYoung Seo, Ken Brevoort, and Olivier Roy. 2025. Gt: Easily Create Presentation-Ready Display Tables. https://gt.rstudio.com.
Mock, Thomas. 2025. gtExtras: Extending Gt for Beautiful HTML Tables. https://github.com/jthomasmock/gtExtras.
Müller, Kirill, and Hadley Wickham. 2026. Tibble: Simple Data Frames. https://tibble.tidyverse.org/.
Spinu, Vitalie, Garrett Grolemund, and Hadley Wickham. 2024. Lubridate: Make Dealing with Dates a Little Easier. https://lubridate.tidyverse.org.
Wickham, Hadley. 2016. Ggplot2: Elegant Graphics for Data Analysis. Springer-Verlag New York. https://ggplot2.tidyverse.org.
———. 2023. Tidyverse: Easily Install and Load the Tidyverse. https://tidyverse.tidyverse.org.
———. 2025a. Forcats: Tools for Working with Categorical Variables (Factors). https://forcats.tidyverse.org/.
———. 2025b. Stringr: Simple, Consistent Wrappers for Common String Operations. https://stringr.tidyverse.org.
Wickham, Hadley, Mara Averick, Jennifer Bryan, Winston Chang, Lucy D’Agostino McGowan, Romain François, Garrett Grolemund, et al. 2019. “Welcome to the tidyverse.” Journal of Open Source Software 4 (43): 1686. https://doi.org/10.21105/joss.01686.
Wickham, Hadley, Winston Chang, Lionel Henry, Thomas Lin Pedersen, Kohske Takahashi, Claus Wilke, Kara Woo, Hiroaki Yutani, Dewey Dunnington, and Teun van den Brand. 2025. Ggplot2: Create Elegant Data Visualisations Using the Grammar of Graphics. https://ggplot2.tidyverse.org.
Wickham, Hadley, Romain François, Lionel Henry, Kirill Müller, and Davis Vaughan. 2023. Dplyr: A Grammar of Data Manipulation. https://dplyr.tidyverse.org.
Wickham, Hadley, and Lionel Henry. 2026. Purrr: Functional Programming Tools. https://purrr.tidyverse.org/.
Wickham, Hadley, Jim Hester, and Jennifer Bryan. 2025. Readr: Read Rectangular Text Data. https://readr.tidyverse.org.
Wickham, Hadley, Davis Vaughan, and Maximilian Girlich. 2025. Tidyr: Tidy Messy Data. https://tidyr.tidyverse.org.
Xie, Yihui, Joe Cheng, Xianying Tan, and Garrick Aden-Buie. 2025. DT: A Wrapper of the JavaScript Library DataTables. https://github.com/rstudio/DT.
